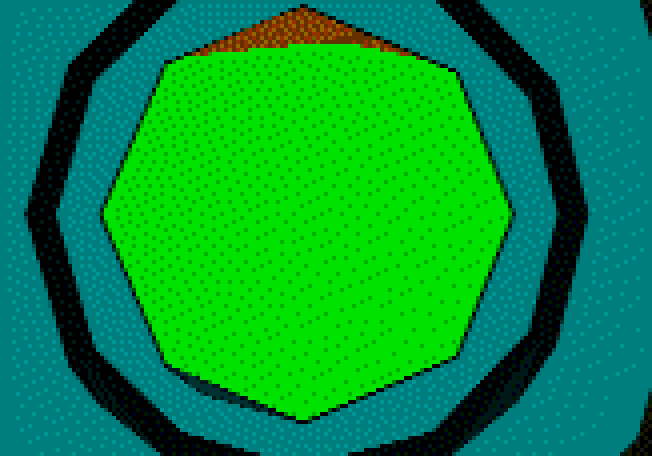

652 wide x 456 high (pixel) Ray Traced Perspective Image (.DXF surfaces)

P120FB04: repeat at 4:1 with target moved 3/4 of the way (145 mm) between lens and SIRTF focal plane. Viewpoint still from center of detector. Center of target on centerline axis of lens. View is entirely of green quadrant through the optical system. The orange is part of the Filter Housing.
