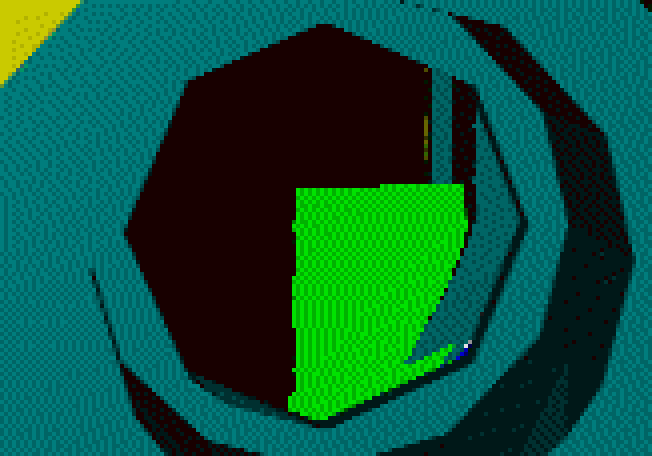

652 wide x 456 high (pixel) Ray Traced Perspective Image (.DXF surfaces)

P120FB06: Black with Green quadrant. Black is viewing past all IRAC structures. Green the corner of quadrant 4 of the Target, confirmed by turning it off in the next image rendered. The Pick-off mirror is the same color as the Stop and is seen penetrating the Target. Black will be view past pickoff mirror to other instruments or IRAC baffle. A Pick-off mirror baffle seems required by this view because we do not really know what is out there to see.
