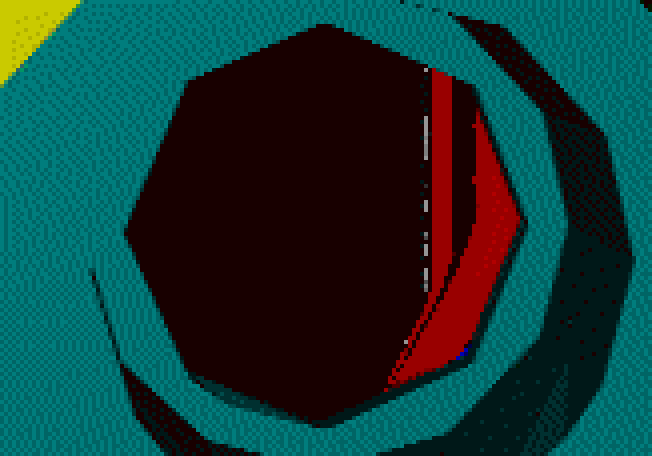

652 wide x 456 high (pixel) Ray Traced Perspective Image (.DXF surfaces)

P120FB09: See changes above after "08." The Stop structure is the dark green. The yellow in the upper left is part of the Optics Housing. The Red is the basic structure of the Pick-off Mirror. The white streak has changed from yellow indicating it is the Pick-off Support Arm.
