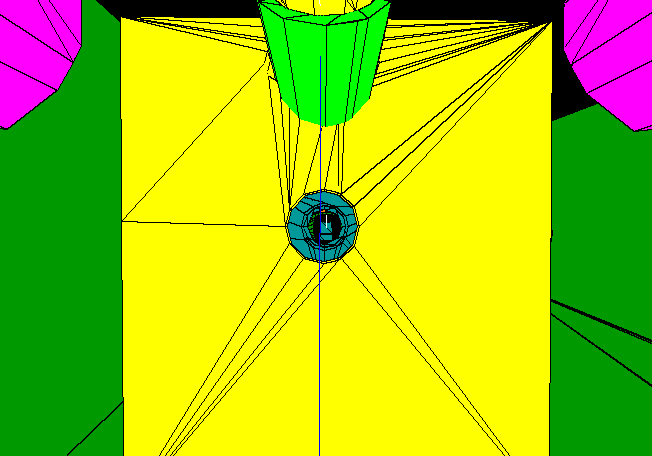

652 wide x 456 high (pixel) Shaded Perspective Image (.DXF surfaces)

P10mm effective focal length: from center of detector

• Flood-Cal (green) & TO Can (yellow); note joint
• Housing (dark green)
• Top of Housing (black=omitted)
• Detector Housing Arms (2) (magenta)
• Housing - Optical (yellow)
• Hole in Housing-Optics for FloodCal beam omitted from drawing
• Central hole contains
  • Stop (dark cyan)
  • Filter CH3 housing at top of image (orange) (filter = frozen)
  • (not seen) Beam Splitter holder (beam splitter = frozen)
  • (not seen) Lens Housing (lens= frozen)
  • Front of Housing (green)
  • Pickoff Mirror (dark cyan)
  • Camera and Target lines (blue, white)
