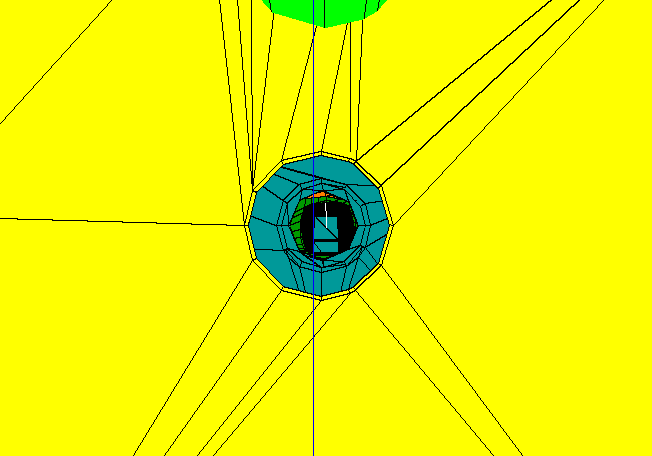

652 wide x 456 high (pixel) Shaded Perspective Image (.DXF
surfaces)
P20mm effective focal length: from center of detector
- Flood-Cal (green)
- Housing - Optics (yellow)
- Hole in Housing-Optics for FloodCal beam omitted from
drawing
- Central hole contains
- Stop (dark cyan)
- Filter CH3 housing at top of image (orange)
(filter = frozen)
- (not seen) Beam Splitter holder (beam splitter =
frozen)
- (not seen) Lens Housing (lens= frozen)
- Front of Housing (green)
- Pickoff Mirror (dark cyan) (note separation notch
and lower mirror surface)
- Camera and Target lines (blue, white)
- (misalignment probably absence of filter &
beamsplitter)
