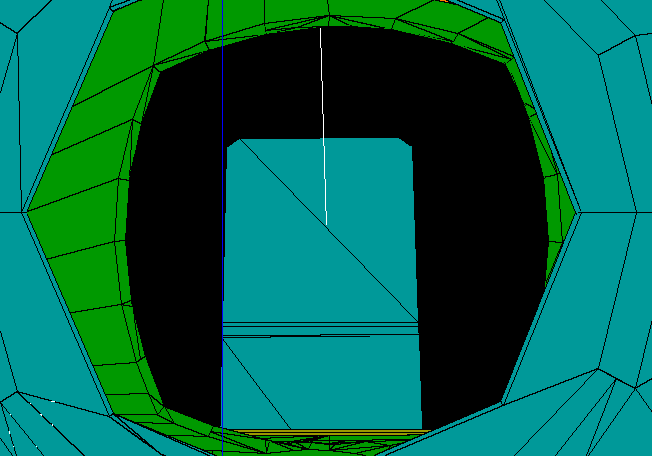

652 wide x 456 high (pixel) Shaded Perspective Image (.DXF surfaces)

P160mm effective focal length: from center of detector

• Central hole contains
  • Stop (dark cyan)
  • Filter CH3 housing - tiny bit at top of image (orange) (filter = frozen)
  • (not seen) Beam Splitter holder (beam splitter = frozen)
  • (not seen) Lens housing (lens= frozen)
  • Flip Mirror (cyan) just off bottom of view
  • Front of Housing (green)
    • Shape is not square with rounded corners?
    • Flat surface potential reflection path!
    • Housing apertures/openings should have vane edges rather than flat edges.
  • Pickoff Mirror (dark cyan) (note separation notch and lower mirror surface)
  • Camera and Target lines (blue, white)
  • (misalignment probably absence of filter & beamsplitter)
  • Edge of base of Pick-off Support seen at opening in Housing (bottom of opening)
